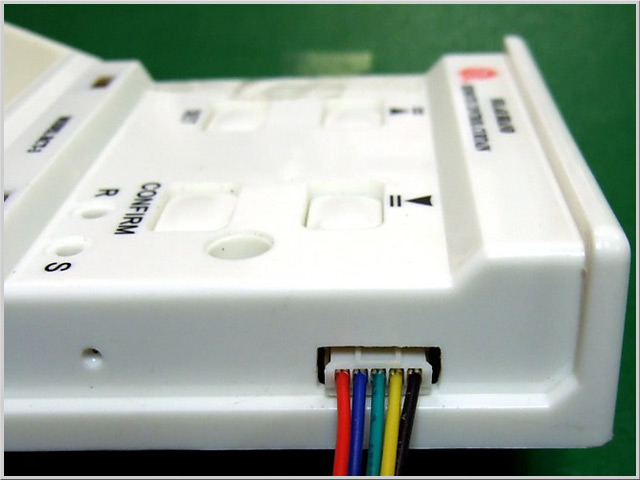

Built in 6-pin Home Automation Port
This port allows effortless and reliable integration with all major Home Automation Systems or Home Theater Systems, including:
  • Apple HomeKit ™
  • Google Home®
  • Samsung SmartThings™
  • Amazon Echo™
  • Crestron®
  • Insteon®, Aoetec®, Control4®, and ZWave®.



  • Multiple Systems Remote( $45.00 per Unit )
    1-to-5 Different Remote Controls which operates multiple systems w/ up to 16 different channels.
    Can be used to control and program your curtains.

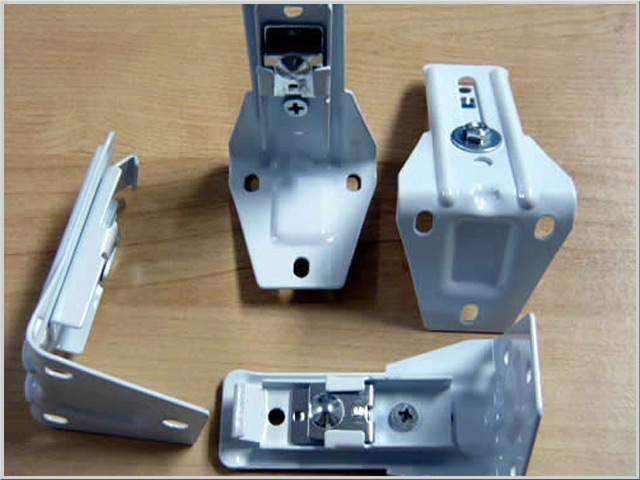

    • MOUNTING BRACKETS
    Wall or Ceiling Styles
    Your Choice of Wall Mount Brackets or Ceiling Mount Brackets. These are included free of charge.



    Electric Curtain Rod System

    $ 375.00 $375.00/curtain rod

    List Price $730.00 /curtain rod

    SAVE 49%


    Build & Delivery Time: 6-8 Weeks
    Made in the USA
    Place Your Order Online
    Exact Feet
    -- Please Select --
    Select Remote Type
    -- Please Select --
    Extras
    Price:
    Price:
    $0.00

    Frequently Asked Questions

    These are the most common questions we've received in the past. If you have additional questions, please contact us at 1-800-407-8665.

    - Do we provide screens?
    - No, screens are not included.
    - Will I have to cut my curtain rod to size?
    - No, they are cut to the size you specify using special tools.
    - Where are they made?
    - These curtains are proudly manufactured in the USA.
    - How do you install? Is hardware included?
    - L-Brackets are used in installation. Additional hardware is not included and may be needed depending on curtain style, curtain rod, and mounts.
    Description

    Electric Curtain Rod System


    Motor Voltage Frequency Power Torque Speed Line Speed Insulation Protection Rating
    S168-A AC100-240V 50Hz/60Hz 50W 1.6N.m 100rpm 10cm/s E IP41


    The Electric Curtain Home Automation System Includes a Power Adapter that plugs into any wall outlet. Note that a Remote Control is not, required to operate the curtain, in addition, a track over 26 Feet can only support the Center-Open option.

    Hand pull the curtain a few inches forward/backward will also activate the Motor moving the Curtain to the end.

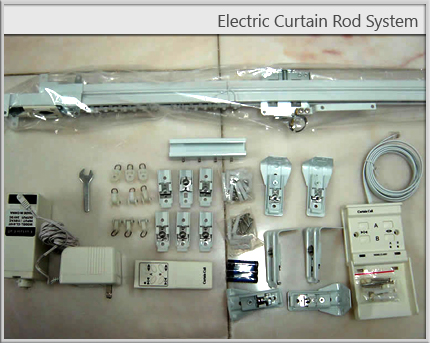

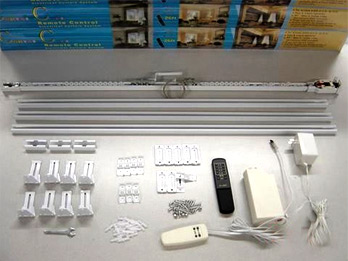

    Price includes the specified size Motorized Track, Motor, Power Adapter, Remote Control, Mounting Brackets and Curtain Runners.

    A complete system that comes with all necessary parts for automating your curtain. (The curtain itself is not included)



    Options:

    1. Home Theater or Home Automation System connectivity port is available at $ 35
    2. Timer Control (operates up to 20 operations daily with multiple systems) is available at $ 175
    The Track is designed with Curtain Runners (Eyelets) for Pinch Pleated Curtain with hooks. The Track can be used for Ripple Fold Curtain by replacing the Eyelets with Ripple Fold Curtain Runners and Ripple Fold Buckle Tape for the curtain. The Buckles are 4 15/16? (125mm) spaced on the Tape. There is an option for the spaced Ripple Fold Runners as following:
    • 2' 3/8" (60mm)
    • 2' 3/4" (70mm)
    • 3' 1/8" (80mm)
    There is a charge of $7 per foot of the Track size for replacing the regular Eyelets with the Ripple Fold Runners and the Buckle Tape.
    1. Remote Control options:
    •  1-Channel Remote Control, add $ 35 (add only $20 if purchased with system)
    •  3-Channel Remote Control, add $ 45 (add only $30 if purchased with system)
    •  6-Channel Remote Control, add $ 55 (add only $40 if purchased with system)
    •  16-Channel Remote Control (Led Display), add $ 85 (add only $50 if purchased with system)



    Notes:



    • The Track must be used as a straight track, can not be curved.
    • Assembling is required for Track size over 8'. Please email us for instructions if wanted.
    • Dual-Track system provides the ability to add a sheer behind the curtain.
    • Dual-Track system is operated independently with the Remote Control .
    • The Track is thick and heavy duty. It requires specialized equipment to cut, and for your satisfaction we recommend notifying us of your exact size before ordering.
    • Curtain Runners are provided based on a measurement of 4" of space between 2 curtain hooks. For exmaple, a 16' Track = 192". Divided by the 4", we would provide 1+48 Hooks (192/4=48 hooks) with 1 additional hook for the first link. Curtain Runners are built onto the Track.
    • If the curtain is designed with more (or less) curtain hooks, you may request more (or less) Curtain Runners. There is no charge but please notify us (if needed) when the order is placed.




    Motor Specifications:



    Characteristics:

      • The Home Automation Motorized Curtain Track System is a modern, durable, and commerical system that operates in virtual silence.
      • Operates at less than 34dB, and no lubrication maintenance required.
      • Allowing for curtains to be opened and/or closed manually (by hand) when power is off
      • Soft Start and Stop
      • When power is on, the motor can be started just by a deliberate pull of the curtain fabric
      • Stopping points can be pre-set by manual pull and calibration, which adjusts the shading of light and tidy the fabric itself
      • Built-in stop sensitive components allows it to find its limits and stops by counting automatically, which eases installation and setup process
      • Stop by counting precisely without accumulated error, which avoids the system instability and noise caused by inaccurate counting
      • Features a silent EM clutch system.

    • Applicable in medium-scale curtains due to quality drive shaft with heavy-duty torque, pull force not less than 8Kg and load weight not less than 50kg
    • Efficiently increases the force and load weight for heavy-load curtain system by adding a secondary motor with perfect synchronization in one single track
    • Satisfying various applications by control options like RTS, IR Control, pulse control, BUS control and smart high voltage
    • 100% Compatible with Crestron and other major brands of Home Automation Systems



    Features: Specifications:
    • Controlled by either a remote control or a control pad (Optional)
    • Safe and reliable design
    • Timer (Optional)
    • Power adapter approved by GS, CE, or UL
    • Choice of (1 to 1) or (multi) remote control
    • Wired directly into household power circuit (optional)
    • Built-in Connectivity Interface for Home Automation (optional)
    • Input voltage: 100V~240V/ 50Hz~60Hz
    • Perfect for consumer and/or commercial applications
    • Torque: 1.6Nm
    • Center, Left or Right opening
    • Operation power: 50W
    • Straight or (optional) curved track
    • Overloading protection
    • Stops at any position preferred
    • Built-in manual operation clutch
    • DIY-Easy to follow video instructions
    • Maximum load: up-to 100 lbs per Motor
    • Easy installation, simple operation
    • 2 year limited warranty

    • 5 year extended warranty available

    • Elegant operate function

    • Electronic limit

    • Light open and light close function

    • Built - in radio receiver

    • Resistance and stop function

    • Light touch - start function

    • Power off - manual function
